Fasteners: Threaded Bars and Lead Screws – An In – Depth Analysis

1. Introduction

Fasteners are an essential component in various industries, playing a crucial role in connecting and securing different parts. Among them, threaded bars and lead screws (also known as丝杠牙条 in Chinese) are widely used due to their unique functions and characteristics. This article aims to provide a comprehensive understanding of these two types of fasteners, covering their definitions, structures, production processes, applications, and future trends.

1.1 Significance in the Industrial Field

Fasteners are the “joints” of the industrial world. They ensure the integrity and stability of mechanical structures, electrical equipment, and construction projects. Threaded bars and lead screws, in particular, are valued for their ability to transmit force, adjust positions, and provide reliable connections. Without them, the assembly and operation of many products and structures would be impossible.

2. Threaded Bars

2.1 Definition and Structure

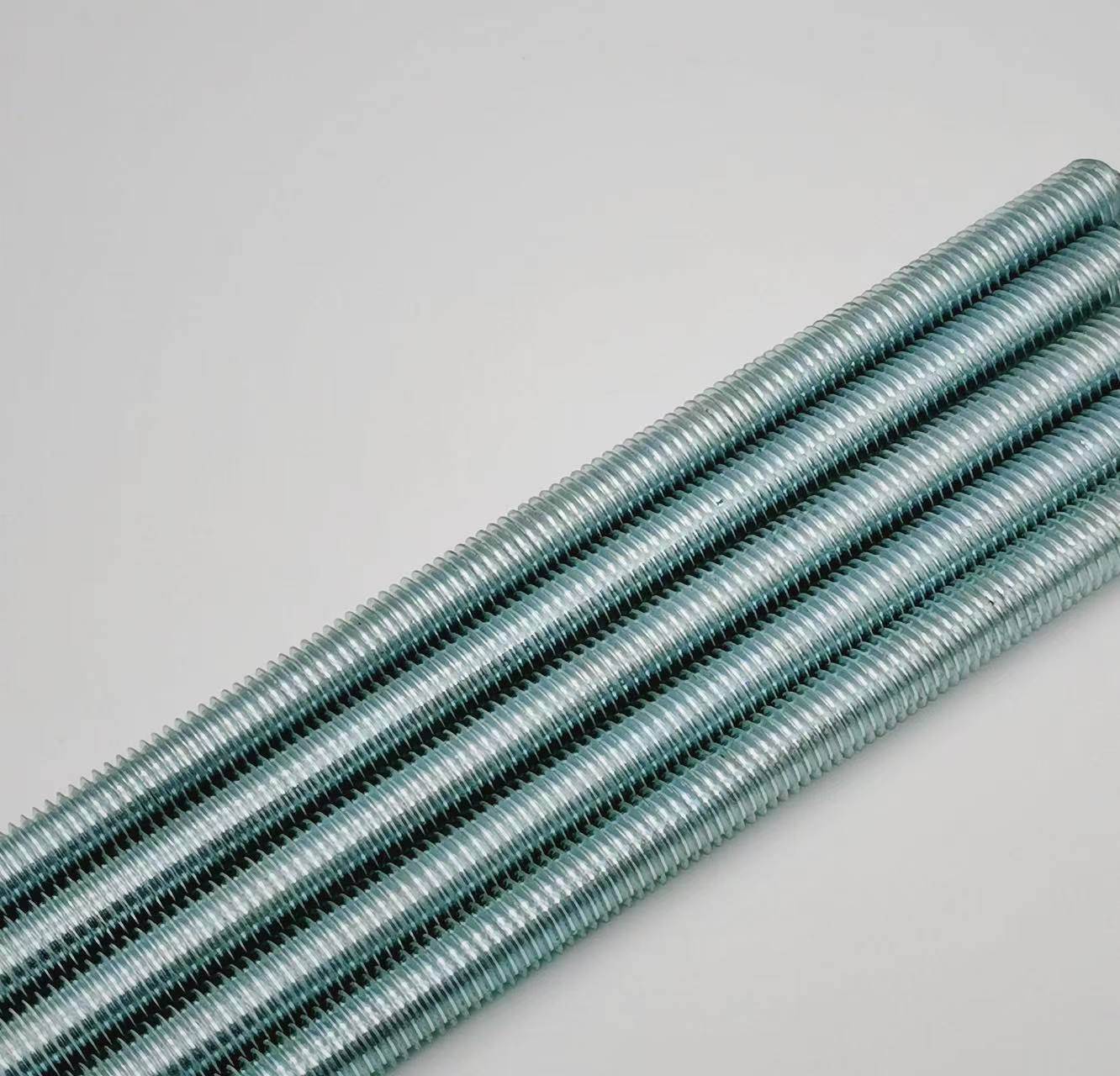

A threaded bar, also known as a threaded rod, is a long, straight metal rod with threads running along its length. These threads are typically helical in shape and can be cut or rolled onto the rod. The threads are designed to mate with nuts, washers, or other threaded components, allowing for the creation of a secure connection between two or more parts.

The structure of a threaded bar is relatively simple. It consists of a cylindrical shaft with the threaded portion. The diameter of the shaft and the pitch of the threads (the distance between adjacent threads) are important parameters that determine the bar’s compatibility with other components. For example, a common metric threaded bar might have a diameter of M8 (8 mm) with a pitch of 1.25 mm.

[Insert an image of a typical threaded bar here, showing the threaded shaft clearly]

2.2 Production Process

  1. Raw Material Selection: The production of threaded bars starts with the selection of raw materials. Common materials include carbon steel, stainless steel, aluminum, and brass. Carbon steel is widely used due to its high strength and relatively low cost. Stainless steel is chosen when corrosion resistance is required, such as in marine or chemical – processing applications. Aluminum is preferred for applications where weight reduction is crucial, like in the aerospace industry, while brass is used for its good electrical conductivity and corrosion resistance in some electrical and decorative applications.
  2. Rod Forming: The raw material, usually in the form of a round bar, is first prepared. If the bar is made from steel, it may need to undergo processes like annealing to improve its machinability. The round bar is then cut to the desired length.
  3. Thread Cutting or Rolling: There are two main methods for creating threads on the bar:

◦ Thread Cutting: In this method, a cutting tool, such as a die or a lathe tool, is used to remove material from the surface of the rod to form the threads. This method is suitable for producing threaded bars with complex thread profiles or in small – scale production. However, it can be time – consuming and may result in a relatively rough thread surface.

◦ Thread Rolling: Thread rolling is a more efficient and widely used method for mass – production. In thread rolling, the rod is passed between two dies with the reverse – imprint of the desired thread profile. As the rod moves through the dies, the material is cold – formed into the thread shape. This process improves the strength and surface finish of the threads, as the material’s grain structure is refined during rolling.

  1. Surface Treatment: After the threads are formed, the threaded bar may undergo surface treatment. Common surface treatments include galvanizing (zinc – plating), which provides corrosion resistance; blackening, which gives a decorative and some degree of corrosion – resistant finish; and powder coating, which can provide additional protection and a variety of color options.
  2. Fully Threaded Bars: As the name implies, fully threaded bars have threads along their entire length. This type of threaded bar is highly versatile. Nuts and washers can be placed at any position along the bar, making it suitable for applications where the connection points need to be adjusted or when multiple components need to be attached along the length of the bar. For example, in the construction of scaffolding, fully threaded bars are used to connect different parts of the structure, allowing for easy assembly and disassembly.
  3. Double – End Studs: Double – end studs are threaded at both ends of the rod, but there is a smooth, unthreaded section in the middle. They are often used when one end needs to be inserted into a pre – drilled, unthreaded hole and the other end is used to attach a nut or another component. In the manufacturing of machinery, double – end studs are commonly used to fasten components to a baseplate or to connect two parts where precise alignment is required.

2.3 Types of Threaded Bars

  1. Tap – End Studs: Tap – end studs are similar to double – end studs, but one of the threaded ends has a longer threaded section than the other. This design is useful in applications where one end needs to be inserted deeper into a threaded hole or when different connection requirements exist at each end. For example, in some automotive engine components, tap – end studs are used to attach parts with different fastening needs.
  2. Hollow Threaded Rods: Hollow threaded rods have a central hole running along their length. This design makes them ideal for applications where wires, cables, or small pipes need to be passed through the rod. In electrical installations, hollow threaded rods can be used to support and protect electrical wiring while also providing a connection point for other components.
  3. Construction Industry: Threaded bars are extensively used in the construction industry. They are used as anchor bolts to secure structures to the foundation. For example, in high – rise buildings, large – diameter threaded bars are inserted into the concrete foundation and used to fasten the steel columns or other structural elements. Threaded bars are also used in the construction of bridges, tunnels, and other infrastructure projects for bracing, tie – rod systems, and to support the weight of the structure.
  4. Mechanical Engineering: In mechanical engineering, threaded bars are used in machinery assembly. They can be used to connect different parts of a machine, such as in the assembly of engines, industrial equipment, and conveyor systems. Threaded bars also play a role in adjustable fixtures and jigs, where their ability to provide a secure and adjustable connection is essential for precise manufacturing processes.
  5. Automotive and Aerospace Industries: In the automotive industry, threaded bars are used in various components, such as engine mounts, suspension systems, and body – to – chassis connections. In the aerospace industry, due to the high – strength and lightweight requirements, threaded bars made of high – strength alloys or titanium are used in aircraft structures, engine components, and landing gear systems. Their reliability and ability to withstand high stress levels are crucial for the safety and performance of the aircraft.
  6. DIY and Home Improvement: Threaded bars are also popular in DIY and home improvement projects. They can be used to build furniture, install shelves, and create custom – made brackets. Their ease of use and availability in various sizes make them a convenient choice for homeowners and hobbyists.

2.4 Applications of Threaded Bars

3. Lead Screws (丝杠牙条)

3.1 Definition and Structure

A lead screw, also known as a power screw or translation screw, is a mechanical device used to convert rotational motion into linear motion. It consists of a threaded shaft (the screw)

and a nut that engages with the threads. The key feature of a lead screw is its ability to precisely control linear movement by rotating the screw.

The structure of a lead screw includes the screw shaft, which has a helical thread, and the nut, which is designed to fit closely onto the thread. The thread profile of a lead screw can be different from that of a regular threaded bar. Common thread profiles for lead screws include trapezoidal, acme, and ball – screw threads. The trapezoidal thread is widely used due to its good load – carrying capacity and relatively easy manufacturing process.

[Insert an image of a lead screw with its nut here, clearly showing the thread profile]

3.2 Production Process

  1. Shaft Manufacturing: Similar to threaded bars, the production of a lead screw starts with the selection of the raw material for the shaft. High – quality steel, often alloyed for increased strength and wear resistance, is commonly used. The shaft is first machined to the desired diameter and length. Precision machining is crucial to ensure the accuracy of the thread pitch and the straightness of the shaft.
  2. Thread Generation:

◦ Cutting: For low – precision or small – batch production, the thread can be cut using a lathe or a specialized thread – cutting machine. This method involves removing material from the shaft to form the thread profile. However, cutting can be time – consuming and may result in a relatively rough surface finish.

◦ Rolling: For high – volume production and better – quality threads, thread rolling is often preferred. In this process, the shaft is passed through a set of dies that cold – form the thread onto the shaft. Thread rolling improves the strength and surface quality of the thread and is more efficient than cutting.

◦ Grinding: In high – precision applications, such as in the production of ball screws, the threads may be ground after rolling or cutting. Grinding can achieve extremely high tolerances and a very smooth surface finish, which is essential for applications that require precise linear motion and low friction.

  1. Nut Manufacturing: The nut for a lead screw is also carefully manufactured. It is typically made from a material that provides good wear resistance and a low coefficient of friction against the screw. Bronze is a common material for lead – screw nuts due to its self – lubricating properties. The nut is machined to have an internal thread that precisely matches the thread on the screw shaft.
  2. Trapezoidal Lead Screws: Trapezoidal lead screws have a trapezoidal – shaped thread profile. This profile offers several advantages, including high load – carrying capacity, good efficiency in converting rotational to linear motion, and relatively easy manufacturing. They are widely used in applications where moderate to high loads need to be moved, such as in machine tools, presses, and linear actuators.

3.3 Types of Lead Screws

  1. Acme Lead Screws: Acme lead screws have an acme – shaped thread, which is similar to a trapezoidal thread but with a different angle. Acme screws are known for their high – precision movement and are often used in applications that require accurate positioning, such as in measuring instruments, printing presses, and some types of robotic systems.
  2. Ball Screws: Ball screws are a more advanced type of lead screw. Instead of a traditional nut – and – thread contact, ball screws use a series of ball bearings between the screw and the nut. These ball bearings reduce friction and improve the efficiency of the lead screw. Ball screws are capable of very high – speed and high – precision linear motion and are commonly used in high – end machinery, such as CNC (Computer Numerical Control) machines, aerospace equipment, and semiconductor manufacturing equipment.
  3. Machine Tools: In machine tools, lead screws are used to control the movement of the cutting tools and the worktable. They enable precise positioning, which is essential for achieving high – quality machining operations. For example, in a milling machine, the lead screw is used to move the table in the X, Y, and Z directions, allowing for accurate cutting of complex shapes.
  4. Linear Actuators: Linear actuators are devices that convert rotational motion into linear motion. Lead screws are a common component in linear actuators, whether they are used in industrial automation, automotive production lines, or home – automation systems. They can be powered by electric motors, hydraulic systems, or pneumatic systems to provide controlled linear movement.
  5. Robotics: In robotics, lead screws are used to control the movement of robotic arms and joints. The precise linear motion provided by lead screws allows robots to perform tasks with high accuracy, such as pick – and – place operations in manufacturing plants or surgical procedures in medical robotics.
  6. Aerospace and Defense: In the aerospace and defense industries, lead screws are used in various applications, including aircraft landing gear retraction systems, missile guidance systems, and satellite positioning mechanisms. Their ability to provide reliable and precise linear motion under extreme conditions is crucial for the performance and safety of these systems.

3.4 Applications of Lead Screws

4. Comparison between Threaded Bars and Lead Screws

4.1 Function

  • Threaded Bars: Their primary function is to provide a connection between two or more components. They are mainly used for fastening and providing structural support. Threaded bars are not typically used for precise linear motion control.
    • Lead Screws: Lead screws are designed to convert rotational motion into linear motion accurately. They are used for applications that require controlled linear movement, such as positioning, adjustment, and force transmission.
    • Threaded Bars: Can carry significant loads in tension and shear, especially when used in construction and heavy – machinery applications. However, their load – carrying capacity in terms of linear motion (compared to lead screws) is not their main focus.
    • Lead Screws: Have a designed load – carrying capacity for linear motion. Trapezoidal and acme lead screws can carry moderate to high loads, while ball screws are capable of handling high loads with high efficiency, especially in high – precision applications.
    • Threaded Bars: Do not offer high precision in terms of linear motion. Their main purpose is to create a secure connection, and the tolerance in the thread pitch is relatively large compared to lead screws.
    • Lead Screws: Are known for their high precision, especially ball screws. They can achieve very small linear displacements with high accuracy, making them suitable for applications where precise positioning is crucial.
    • Threaded Bars: Do not have a high efficiency in terms of converting rotational motion to linear motion, as this is not their main function.
    • Lead Screws: Ball screws, in particular, have a high efficiency in converting rotational motion to linear motion due to the use of ball bearings, which reduce friction. Trapezoidal and acme lead screws also have a relatively good efficiency, especially when properly lubricated.

    4.2 Load – Carrying Capacity

    4.3 Precision

    4.4 Efficiency

    5. Quality Standards and Testing

    5.1 International and National Standards

    1. ISO Standards: The International Organization for Standardization (ISO) has standards related to fasteners, including threaded bars and lead screws. For threaded bars, ISO standards cover aspects such as thread dimensions, mechanical properties, and surface finish. For lead screws, ISO standards define the thread profiles, tolerances, and performance requirements.
    2. ASTM Standards: In the United States, the American Society for Testing and Materials (ASTM) sets standards for fasteners. ASTM standards for threaded bars specify the material grades, chemical composition, and mechanical properties. For lead screws, ASTM standards help in ensuring the quality and performance of different types of lead screws, especially in the context of American manufacturing and industrial applications.
    3. National Standards in Other Countries: Many countries have their own national standards for fasteners. For example, in Germany, DIN (Deutsches Institut für Normung) standards are widely used. DIN standards for threaded bars and lead screws are highly regarded in European manufacturing and engineering industries. In China, GB (Guobiao) standards play a crucial role in regulating the production and quality of fasteners, ensuring that they meet the requirements of domestic and international markets.
    4. Mechanical Property Testing:

    5.2 Testing Methods

    ◦ Tensile Testing: For threaded bars and lead – screw shafts, tensile testing is performed to determine their tensile strength, yield strength, and elongation. This test involves applying a gradually increasing tensile force to a sample until it breaks, and the data collected helps in evaluating the material’s mechanical properties.

    ◦ Torque Testing: For threaded bars, torque testing is used to determine the torque required to tighten or loosen a nut on the threaded bar. This is important for ensuring proper fastening and connection strength. For lead screws, torque testing can be used to measure the torque required to rotate the screw and move the nut, which is related to the efficiency and load – carrying capacity of the lead screw.

    1. Thread Quality Testing:

    ◦ Thread Pitch and Profile Measurement: Using precision measuring instruments such as thread gauges and coordinate measuring machines (CMMs), the pitch and profile of the threads on threaded bars and lead screws are measured. This ensures that the threads meet the specified standards and are compatible with the mating nuts.

    ◦ Thread Wear Testing: In applications where the fasteners are subject to repeated use and wear, thread wear testing may be carried out. This can involve cycling the nut on the threaded bar or lead screw a certain number of times and then measuring the wear on the threads to evaluate the durability of the fastener.

    1. Surface Quality Testing:

    ◦ Visual Inspection: A simple but important method, visual inspection is used to check for surface defects such as cracks, scratches, and uneven coatings. This is done to ensure that the fasteners have a good surface finish and are free from any visible flaws that could affect their performance.

    ◦ Coating Thickness Measurement: For threaded bars and lead screws with surface coatings (such as galvanized or powder – coated), the thickness of the coating is measured using techniques like magnetic induction or X – ray fluorescence. This ensures that the coating provides the required level of protection against corrosion.

    6. Future Trends

    6.1 Material Innovations

    1. High – Strength and Lightweight Materials: With the increasing demand for more efficient and lightweight structures in various industries, there is a trend towards using high – strength and lightweight materials for threaded bars and lead screws. For example, the development of new high – strength alloys and composite materials can improve the performance of these fasteners while reducing their weight. In the aerospace industry, the use of titanium – based alloys for lead screws can provide high strength and corrosion resistance with a lower weight compared to traditional steel materials.
    2. Self – Lubricating Materials: To reduce friction and improve the efficiency of lead screws, especially in applications where external lubrication is difficult or not desired, self – lubricating materials are being developed. These materials can incorporate lubricating additives or have a surface treatment that provides long – term lubrication, reducing the need for maintenance and improving the lifespan of the fastener.
    3. Additive Manufacturing (3D Printing): Additive manufacturing technology is gradually being applied to the production of fasteners. For threaded bars and lead screws, 3D printing can enable the production of complex geometries and customized designs that are difficult to achieve with traditional manufacturing methods. This can lead to more efficient and optimized fastener designs, especially for small – batch production and specialized applications.
    4. Smart Fasteners: The concept of smart fasteners is emerging, where fasteners are equipped with sensors or other monitoring devices. For example, a threaded bar or lead screw could be integrated with strain sensors to monitor
