Introduction

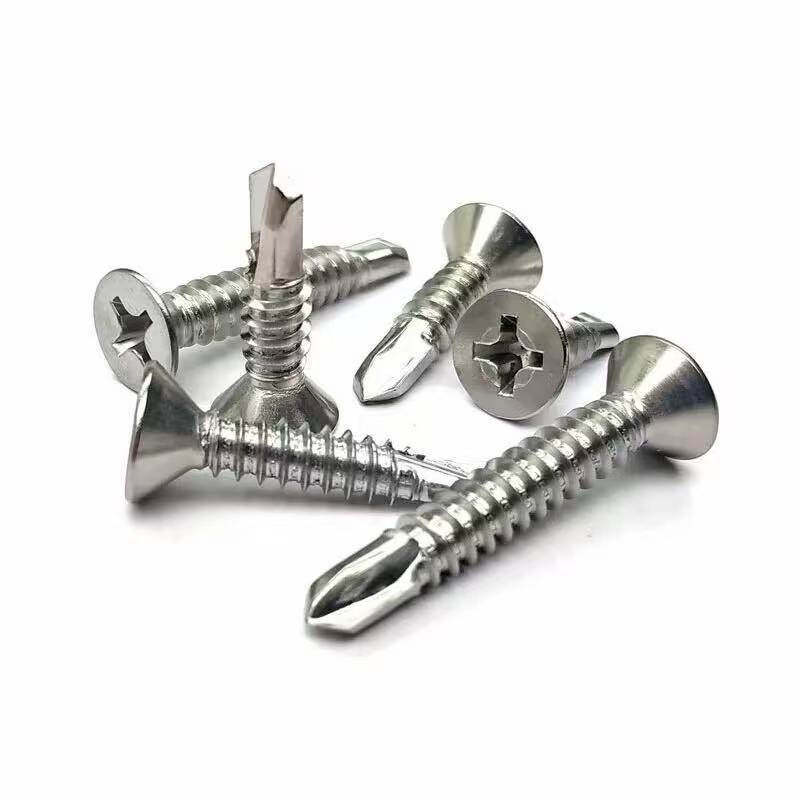

Self-drilling screws, commonly referred to as *drill tail screws* or *Tek screws* (a trademarked name), represent a groundbreaking innovation in the field of mechanical fasteners. These screws integrate the functions of drilling, tapping, and fastening into a single component, eliminating the need for pre-drilling pilot holes. Widely used in construction, automotive, and industrial manufacturing, self-drilling screws have become indispensable in scenarios requiring efficiency, precision, and material compatibility. This article explores their design principles, material science, applications, and future trends.
1. Historical Development of Self-Drilling Screws
1.1 Origins of Fastening Technology
The concept of threaded fasteners dates back to ancient times, with early examples found in wooden screws used in olive presses during the Roman Empire. However, the modern screw evolved during the Industrial Revolution, driven by the need for standardized components in machinery. Traditional screws required pre-drilled holes, a time-consuming process that limited productivity.
1.2 Birth of Self-Drilling Screws
The first self-drilling screw was patented in the 1960s, designed to address challenges in fastening sheet metal and thin-walled structures. Early versions featured a modified drill bit tip but suffered from limited durability. Advances in metallurgy and coating technologies in the 1980s enabled the mass production of high-performance self-drilling screws capable of penetrating harder materials like steel and composite panels.
2. Design and Engineering Principles
2.1 Structural Anatomy
A self-drilling screw consists of four key components:
1. Drill Point: A hardened tip resembling a twist drill bit, designed to cut through materials.
2. Threads: Spiral ridges that create mating threads in the substrate.
3. Shank: The unthreaded section between the head and threads, providing shear resistance.
4. Head: Available in various profiles (e.g., hex, pan, flat) to suit different driving tools.
2.2 Material Selection
Carbon Steel: Cost-effective for general-purpose applications but prone to corrosion.
Stainless Steel (304/316): Offers corrosion resistance for outdoor or marine environments.
Alloy Steel (e.g., Grade 5 or 8): Heat-treated for high tensile strength in heavy-duty applications.
Coatings: Zinc plating, phosphate coating, or Dacromet® enhance corrosion resistance and reduce friction during installation.
2.3 Thread Geometry
Fine Threads: Ideal for hard materials (e.g., steel) requiring precise grip.
Coarse Thread: Suited for soft substrates like wood or plastic.
Double Threads: Accelerate installation speed by reducing rotational resistance.
3. Functional Advantages Over Conventional Screws
3.1 Time and Labor Efficiency
By combining drilling and fastening, self-drilling screws reduce installation time by up to 50% compared to traditional screws requiring pilot holes. This is critical in large-scale projects like steel frame construction.
3.2 Enhanced Joint Integrity
The screw’s ability to create its own hole ensures perfect alignment between the thread and substrate, minimizing the risk of cross-threading or loosening under vibration.
3.3 Material Versatility
Modern self-drilling screws can penetrate:
Sheet metal (up to 12 mm thickness)
Aluminum alloys
Fiberglass-reinforced plastics (FRP)
Concrete (when paired with specialized drill points)
4. Industrial Applications
4.1 Construction and Architecture
Steel Framing: Widely used in erecting prefabricated steel structures for commercial buildings.
Roofing and Cladding: Secures corrugated metal sheets without damaging waterproof coatings.
Drywall Installation: Self-drilling drywall screws feature wings to prevent over-drilling.
4.2 Automotive Manufacturing
Chassis Assembly: Replaces rivets in joining aluminum components, reducing vehicle weight.
Electrical Systems: Secures wire harnesses to metal frames.
4.3 Renewable Energy
Solar Panel Mounting: Stainless steel variants resist corrosion in solar farms.
Wind Turbines: High-strength screws anchor turbine blades to hubs.
5. Selection Criteria for Optimal Performance
5.1 Substrate Material Hardness
Soft Materials (Wood, PVC): Use screws with a sharp drill point and coarse threads.
Hard Materials (Steel, Concrete): Opt for alloy steel screws with TiN (titanium nitride) coated drill points.
5.2 Environmental Factors
Humid or Coastal Areas: Choose stainless steel or Dacromet-coated screws.
High-Temperature Environments: Ceramic-coated screws resist oxidation up to 1,000°C.
5.3 Load Requirements
Shear Loads: Select screws with a thick shank and fine threads.
Tensile Loads: Use screws with full-length threads and a torx drive head for higher torque.
6. Installation Best Practices
6.1 Tool Selection
Electric Screwdrivers: Provide consistent torque for repetitive tasks.
Impact Drivers: Deliver high rotational force for dense materials.
Depth Stops: Prevent over-penetration in thin materials.
6.2 Common Pitfalls to Avoid
Excessive Speed: Generates heat, dulling the drill point.
Misalignment: Causes thread stripping or screw breakage.
Over-Tightening: Compromises joint integrity by deforming the substrate.
7. Market Trends and Innovations
7.1 Smart Screws
Embedded RFID tags or sensors enable real-time monitoring of structural loads in bridges or aircraft.
7.2 Eco-Friendly Materials
Biodegradable polymer screws are emerging for temporary fastening in environmentally sensitive projects.
7.3 Additive Manufacturing
3D-printed self-drilling screws with customized geometries are being tested for aerospace applications.
8. Challenges and Limitations
8.1 Cost Considerations
High-performance screws with specialized coatings can cost 3–5 times more than standard screws.
8.2 Material Thickness Constraints
Self-drilling screws are less effective in ultra-thick materials (>20 mm), where traditional drilling remains preferable.
9. Future Prospects
The global self-drilling screw market is projected to grow at a CAGR of 5.8% from 2023 to 2030, driven by infrastructure development in emerging economies. Advances in nanotechnology coatings and AI-driven manufacturing will further enhance product performance.
Conclusion
Self-drilling screws epitomize the fusion of mechanical ingenuity and material science. By streamlining installation processes and expanding the scope of fastenable materials, they have redefined efficiency standards across industries. As technology evolves, these screws will continue to play a pivotal role in shaping the future of construction and manufacturing.
